Lithos 5 G glass wool roof panel
Lithos 5 G is a glass wool roof panel rated A2-s1,d0 for reaction to fire. Glass wool insulates slightly better than rock wool, with a thermal conductivity of 0.039 W/mK, and is made with at least 80% recycled glass.
A2-s1,d0[In stock IE?]
Thickness50–200 mm
U @ 100 mm0.38 W/m²K
Cover width1000 mm
CoreGlass wool
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Lithos 5 G glass wool roof panel
It comes from 50 to 200 mm thick, reaching a U-value of 0.20 W/m²K at 200 mm, and is fully recyclable at end of life.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Thicknesses
- 50 · 60 · 80 · 100 · 120 · 150 · 200 mm

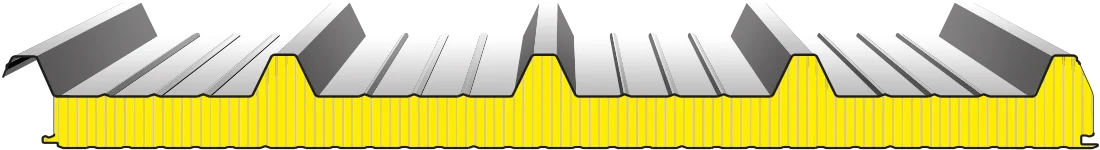

- Profile
- 5 trapezoidal ribs
Core and joint
- Core
- Medium-density glass wool, λ = 0.039 W/mK. Over 80% recycled glass; 100% recyclable at end of life.
- Sustainability
- 80% recycled glass, 100% recyclable at end of life
- Manufacturer
- Isolpack S.p.A., Italy · product code G3
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Stainless steel · Natural, pre-painted or embossed aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 50 mm | 0.73 |
| 60 mm | 0.62 |
| 80 mm | 0.47 |
| 100 mm | 0.38 |
| 120 mm | 0.32 |
| 150 mm | 0.26 |
| 200 mm | 0.20 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.4 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Glass wool | A2-s1,d0 | 50–200 mm |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Use it for
IndustryCommercialAgricultureInfrastructure
