Airfix ventilated facade panel system
Airfix is a ventilated facade panel: an insulated wall panel with a clamp fixing system. Brackets grip the panel rib, so porcelain, timber, metal or polycarbonate cladding can be hung in front of it without drilling through the insulated panel.
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Airfix ventilated facade panel
That keeps the wall airtight and free of thermal bridges behind the rainscreen. It comes from 30 to 140 mm thick, with a U-value of 0.22 W/m²K at 100 mm, and with a PIR core it is B-s1,d0 from 100 mm.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Thicknesses
- 30 · 40 · 50 · 60 · 80 · 100 · 120 · 140 mm

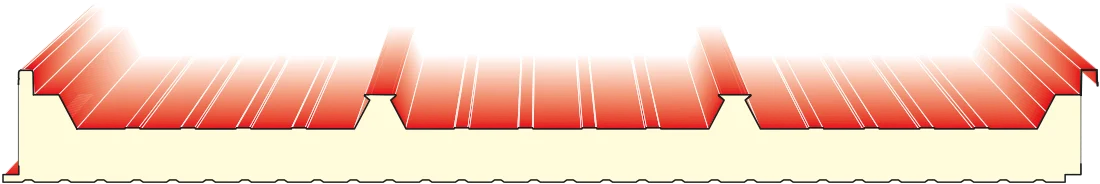

- Profile
- Trapezoidal rib with clamp fixing for rainscreen (no through-drilling)
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Manufacturer
- Isolpack S.p.A., Italy · product code D6
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Aluzinc · Stainless steel · Natural or pre-painted aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 30 mm | 0.69 |
| 40 mm | 0.53 |
| 50 mm | 0.43 |
| 60 mm | 0.36 |
| 80 mm | 0.27 |
| 100 mm | 0.22 |
| 120 mm | 0.18 |
| 140 mm | 0.15 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.4 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · PIR | B-s1,d0 | 100–140 mm certified as EV1M |
| Reaction to fire EN 13501-1 · PIR | B-s2,d0 | 30–140 mm certified as EV1M |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
