Onda wave-profile wall panel, hidden fixing
Onda is an architectural wall panel with an insulated core, an angled wave-profile face and hidden fixings, for front elevations where the building needs to look designed rather than industrial.
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Onda architectural wall panel
It comes in 70, 80 and 100 mm nominal thicknesses, with U-values of 0.43, 0.36 and 0.27 W/m²K. With a PIR core it is certified B-s2,d0 for reaction to fire.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Thicknesses
- 70 · 80 · 100 mm. Nominal 'D' thickness; minimum core thickness 50 / 60 / 80 mm respectively

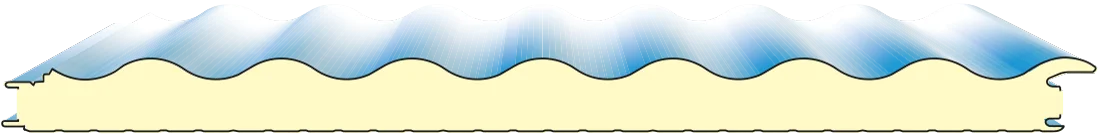

- Profile
- Angled / wave face, concealed fix
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Manufacturer
- Isolpack S.p.A., Italy · product code S3
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Aluzinc · Stainless steel · Natural or pre-painted aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, Plastisol, plasticised PVC, 15–200 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 70 mm | 0.43 |
| 80 mm | 0.36 |
| 100 mm | 0.27 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.4 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · PIR | B-s2,d0 | 70–100 mm |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
