H 20 box profile roofing and cladding sheet

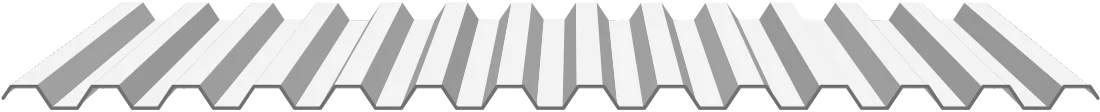

H 20 is a box profile cladding sheet with 14 shallow ribs, 20 mm deep, used mostly on walls. The overlap can be one, one and a half or two ribs, giving cover widths of 980, 940 or 900 mm.
A1Curvable[In stock IE?]
Thicknessup to 1.0 mm steel
Cover width900 / 940 / 980 mm
MaterialSteel
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the H 20 box profile cladding sheet
It is supplied up to 1.0 mm thick, weighing 5.2 kg/m² at 0.5 mm, and can be curved on site to a radius of 8 to 9 m. As steel it is A1 for reaction to fire and BRoof(cwft) on roofs.
Specification
Size and profile
- Cover width
- 900 / 940 / 980 mm
- Length
- Made to length from continuous production.
- Steel gauge
- up to 1.0 mm
- Ribs / pitch / height
- 14 ribs · 78 mm pitch · 20 mm high
- Rib width / base
- 22.5 mm / 51 mm
- Side overlap
- 2 / 1.5 / 1 rib(s)
- Curvable
- On site from radius 8–9 m; factory curving by notching
Core and joint
- Material
- Single-skin profiled steel sheet
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Aluzinc · Stainless steel · Natural, pre-painted or embossed aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
Weight by gauge
| Steel gauge | kg/m² |
|---|---|
| 0.5 mm | 5.2 |
| 0.6 mm | 6.2 |
| 0.7 mm | 7.3 |
| 0.8 mm | 8.3 |
| 1.0 mm | 10.4 |
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Steel | A1 | all |
| External fire EN 13501-5 · Steel | BRoof(cwft) | all |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Use it for
IndustryCommercialAgricultureInfrastructureResidential
