Alfa King cold room panel with double gasket
Alfa King is a cold room panel with a double seal: a continuous EPDM gasket built into the joint, which stays flexible down to -40 °C, plus a sealant applied on site. Tested dry-coupled, the joint is watertight to 1350 Pa and airtight to 500 Pa.
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Alfa King cold room panel

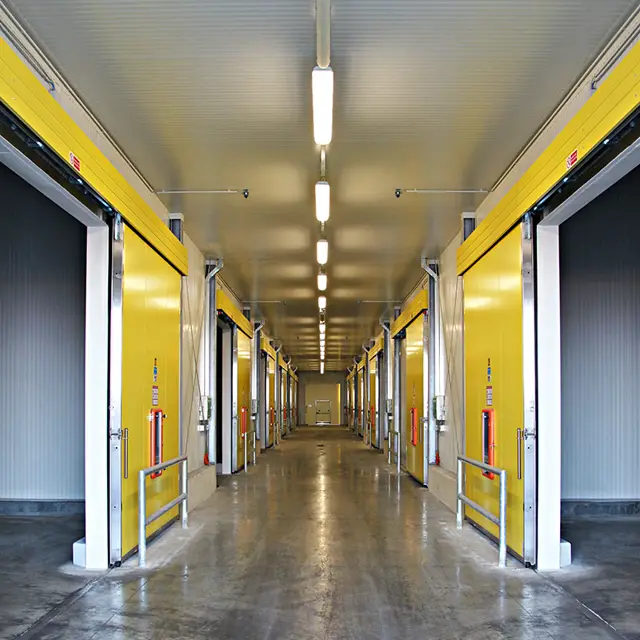

It is used for chill rooms from -5 to +15 °C, freezers from -24 to 0 °C, controlled-atmosphere stores and clean rooms, from 100 to 200 mm thick with U-values down to 0.11 W/m²K. Stainless steel facings suit dairies and meat plants. With a PIR core it is B-s1,d0 from 100 mm and EI60 at 200 mm for spans up to 4 m.
Specification

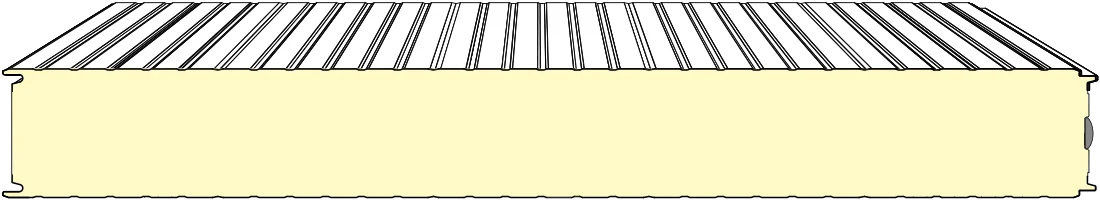

Size and profile
- Cover width
- 1000 mm (Non-standard 1155 mm on request)
- Length
- Made to length from continuous production.
- Thicknesses
- 100 · 120 · 140 · 150 · 160 · 180 · 200 mm. Web page also lists 80 mm (certified B-s2,d0 at 80); datasheet standard range starts at 100 mm.
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Joint
- Patented double seal: continuous hollow EPDM gasket in the joint (flexible to −40 °C) + site-applied single-component thixotropic PU or silicone sealant. Tested water-tight to 1350 Pa and air-tight to 500 Pa (dry-coupled).
- Temperature range
- Chill rooms −5 °C to +15 °C; freezer rooms −24 °C to 0 °C; controlled-atmosphere and low-oxygen stores; clean rooms
- Manufacturer
- Isolpack S.p.A., Italy · product code A8
Facings and coatings
- Facings
- FE S250GD galvanised steel, pre-painted or plasticised · Stainless steel
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, Plastisol, plasticised PVC, 15–200 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 100 mm | 0.22 |
| 120 mm | 0.18 |
| 140 mm | 0.16 |
| 150 mm | 0.15 |
| 160 mm | 0.14 |
| 180 mm | 0.12 |
| 200 mm | 0.11 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.4 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · PIR | B-s1,d0 | 100–200 mm |
| Reaction to fire EN 13501-1 · PIR | B-s2,d0 | 80 mm |
| Fire resistance EN 13501-2 · PIR | EI60 | 200 mm up to 4 m clear span |
| Fire resistance EN 13501-2 · PIR | EI30 | 200 mm up to 7.5 m clear span |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
