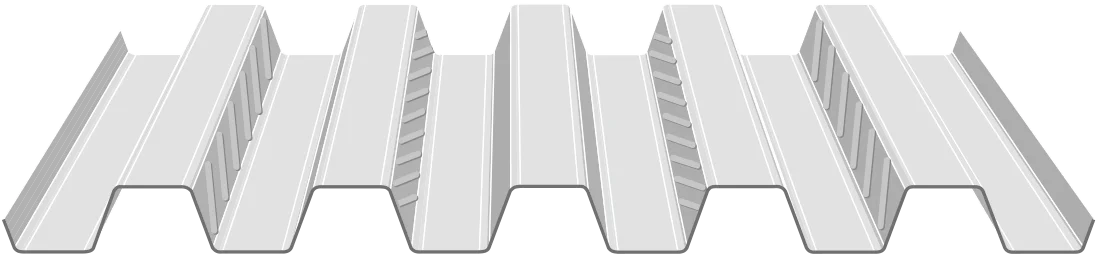

E/S 4000 AM composite floor decking sheet
E/S 4000 AM is a composite floor decking sheet with an embossed surface that bonds to the concrete, so the steel and slab act together. Its low rib suits floors where depth is limited, and the slab can include bars and welded mesh.
A1[In stock IE?]
Thicknessup to 1.5 mm steel
Cover width787 mm
MaterialSteel
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the E/S 4000 AM composite floor decking
It has a 787 mm cover width and is supplied up to 1.5 mm thick. As steel it is A1 for reaction to fire.
Specification
Size and profile
- Cover width
- 787 mm
- Length
- Made to length from continuous production.
- Steel gauge
- up to 1.5 mm
Core and joint
- Material
- Single-skin profiled steel sheet
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Galvanised steel
- Steel grades
- S 235, S 250 GD+Z, S 260 NC, S 275, S 280 GD+Z, S 315 MC, S 315 NC, S 320 GD+Z
Non-standard thicknesses on request, subject to minimum quantities.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Steel | A1 | all |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Use it for
IndustryCommercialInfrastructureResidential
