S/C 2000 6-rib decking sheet
S/C 2000 is a six-rib metal decking sheet with 53 mm ribs and an 812.5 mm cover width, for roofs and dry floors where a shallow slab section matters.
A1[In stock IE?]
Thicknessup to 1.5 mm steel
Cover width812.5 mm
MaterialSteel
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the S/C 2000 metal decking sheet
It is supplied up to 1.5 mm thick. The S/C 2000 AM version is embossed to bond with the concrete for composite floors. As steel it is A1 for reaction to fire.
Specification
Size and profile
- Cover width
- 812.5 mm
- Length
- Made to length from continuous production.
- Steel gauge
- up to 1.5 mm

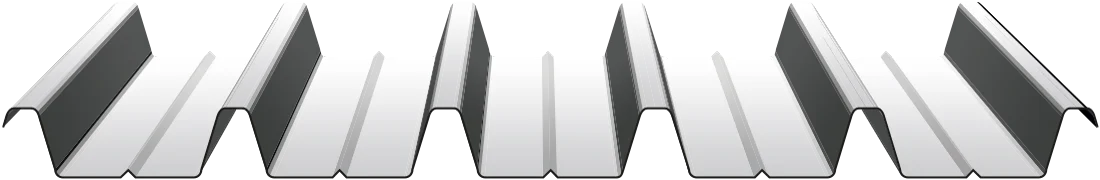

- Ribs / pitch / height
- 6 ribs · 162.5 mm pitch · 53 mm high
- Rib width / base
- 25 mm / 50 mm
- Side overlap
- 1 rib(s)
Core and joint
- Material
- Single-skin profiled steel sheet
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Galvanised steel (AM)
- Steel grades
- S 235, S 250 GD+Z, S 260 NC, S 275, S 280 GD+Z, S 315 MC, S 315 NC, S 320 GD+Z
- Coatings
- Polyester, Superpolyester (HD); other films on request.
Non-standard thicknesses on request, subject to minimum quantities.
Weight by gauge
| Steel gauge | kg/m² |
|---|---|
| 0.6 mm | 6.0 |
| 0.8 mm | 9.6 |
| 1.0 mm | 11.9 |
| 1.25 mm | 15.6 |
| 1.5 mm | 18.0 |
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Steel | A1 | all |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Versions
S/C 2000 AM: Improved-adhesion (AM) version for composite floors. Datasheet
Use it for
IndustryCommercialInfrastructureResidential
